业务领域

半导体及电子零件材料专门企业

精密化学药品

半导体用
精密
清洗剂

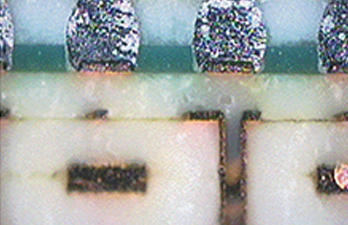

Before Cleaning

After Cleaning

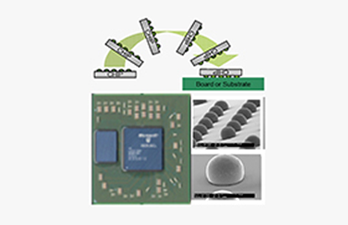

Flip Chip Package用Flux Cleaner



目的

在3%以下低浓度也能发挥卓越清洁效果,清洗后不留残留物

在Bump Ball 40㎛以下超精密PKG也能发挥优秀的清洁效果

RoHS & Halogen Free Chemical

几乎不发生泡沫,Usage节省效果显著,并拥有各种Model清洗剂,以适用于全部种类Flux清洁

支持开发最适合于客户Process及产品的定制型产品

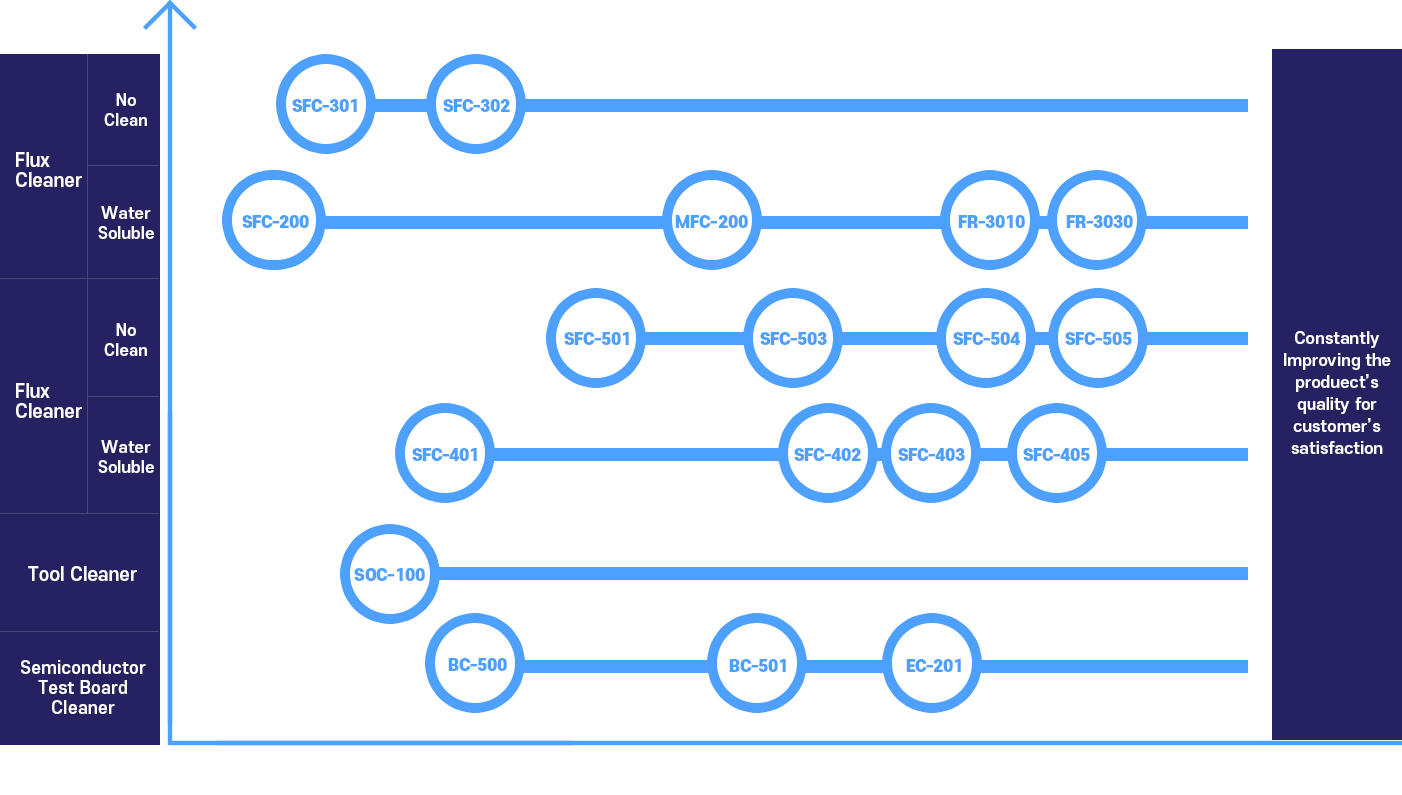

Model Description Benefits Applicable Operations

Flux Cleaner

SFC-200 series

Water Soluble Flux Cleaner

Water soluble flux remover Superior cleaning ability (@ Low Concentration) Easy to Manage RoHS & Halogen Free

Spray In-Line Cleaning Ultrasonic Cleaning Dipping

SFC-300 series

No Clean Flux Cleaner

Non-water soluble flux cleaner Superior cleaning ability (@ Low Concentration) Easy to Manage RoHS & Halogen Free

Spray In-Line Cleaning Ultrasonic Cleaning Dipping Manual Cleaning

SFC-400 series

Water Soluble Flux Cleaner (Neutral Type)

No damage for aluminium material Superior cleaning ability (@ Low Concentration) Easy to Manage RoHS & Halogen Free

Spray In-Line Cleaning Ultrasonic Cleaning Dipping

SFC-500 series

No Clean Flux Cleaner (Neutral Type)

Multi-purpose flux cleaner No damage for aluminium material Superior cleaning ability (@ Low Concentration) Easy to Manage RoHS & Halogen Free

Spray In-Line Cleaning Ultrasonic Cleaning Dipping Manual Cleaning

MFC series

Water Soluble Flux Cleaner (Micro Fine Pitch)

Micro fine pitch applicable flux cleane High penetration Superior cleaning ability (@ Low Concentration) Easy to Manage RoHS & Halogen Free

Spray In-Line Cleaning Ultrasonic Cleaning Dipping

SOC-100

Precision Tool Cleaner

Excellent oil removing agent No material damage

Ultrasonic Cleaning Dipping

BC-500 series & EC-201

Semiconductor Test Board Cleaner

Excellent contaminant remover (@burn-in board) No board damage

Ultrasonic Cleaning Dipping
